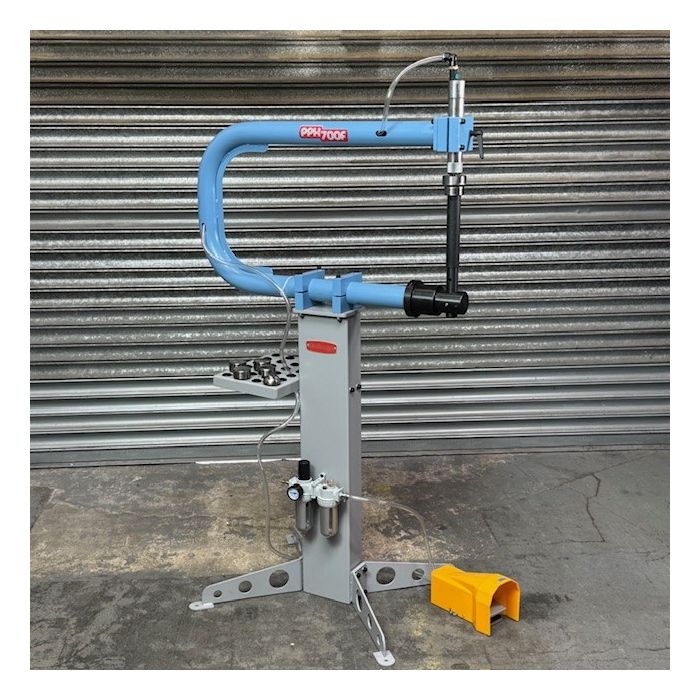

Stakesys PPH700F Pneumatic Planishing Hammer

Stakesys PPH700F Pneumatic Planishing Hammer
Our newest and biggest Air Planishing Hammer.
The PPH700F features a 700mm throat, 48mm thick frame tubes and a powerful air motor. Capable of smoothing 1.5mm steel and 2.6mm aluminium.
Includes 6 lower planishing anvils in heated treated steel to 60hrc. The PPH700F is similar to its younger sibling; the PPH600F, but everything is increaesd in size to cope with heavier material. Perfect for shaping car bodywork, motorcycle parts or artistic sculpure. The lower anvils are easily changed by dropping the lower stake. Clearance is adjusted from above with the lever bolt allowing movement of the air motor. Comes with a Voylet inline oiler, flow valve and moisture trap to prolong motor life. Hammer speed can be controlled via the flow valve to control incoming air pressure, and finite speed can be adjusted via the small check valve situated above the air motor.
Most compressors with 100psi, and tanks over 50ltrs will run the PPH700F. The larger the tank, the less waiting time for the compressor to catch up. Generally its not an issue as parts need to be constantly checked for shape. The pedal is 'latched' This means its one press to start, and another press to stop. This negates the need to balance on one leg during operation and is more comfortable to use.
- 1.5mm Steel Capability
- 6 lower heat treated planishing anvils included
- Inline filter and oiler included
Product Code Set | PPH700F |
Throat Depth | 700mm |
Hammer Speed | Adjustable 1800~4600 bpm |
Material Capacity | 1.5mm mild steel / 2.6mm soft annealed aluminium |
Upper Anvil Diameter | 60mm |
Lower anvils diameter | 50mm |
Lower Anvil Spigot Diameter | 20mm |
Lower Anvils Included (radius - inches) | 1R, 2R, 3R, 6.25R, 14.5R & 36R |
Lower Anvils Included (radius - metric) | 25, 50, 76, 158, 368, 914mm |
Air Consuption | 100psi / 230-425 L/min 4CFM |
Machine Weight | 42kg |
Dims for shipping | 50cm x 20cm x 15cm - 30kg |
