RIX 420200 Swivel Head Power Puncher Kit
![](/pub/media/brands/Alfra.jpg)
made in
Germany
RIX Germany Swivel Head Power Punch Kit
Industrial quality German made Hydraulic Knock-out punch tool for use with Rix-Alfra knock-out punches, creating burr free clean punched holes ready for switch gear installation, panel punching and general fabrication.
Capable of punching round, square or rectangular holes with appropriate RIX punches & dies. Importantly RIX Power punches are fully compatible with other similar brand systems using this method. Rix make a vast range of punches in different sizes from 12mm-150mm round and square. If you can't see what you want call us to discuss on 01509 812171.
Unique features include:
- Special hardened steel puncher head.
- Rubberised soft touch grip.
- Easy maintenance and refilling of hydraulic oil.
- Super strong hydraulic sealings.
- Smooth hand hydraulic power assisted operation.

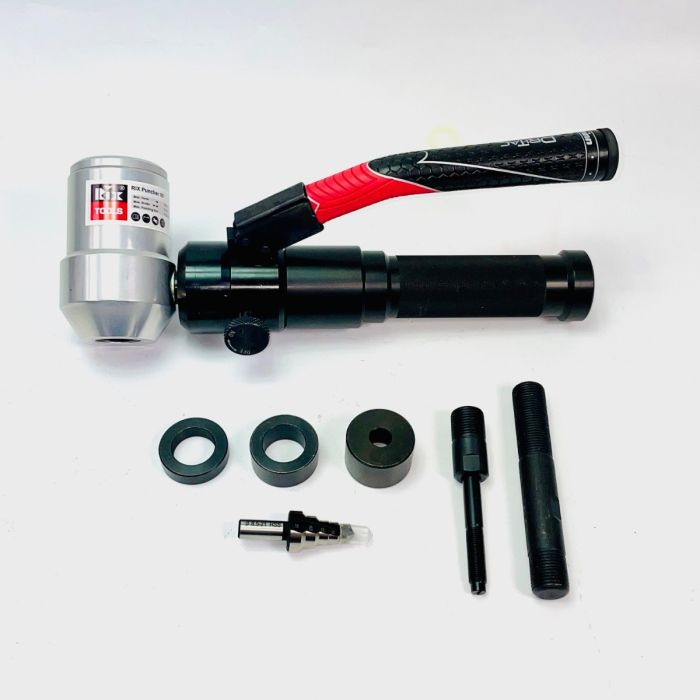

- Supplied with high quality carry case and inlay, tension bolts three spacer rings and one pre-drill bit.
Product Code | 420200 |
Capacity-Mild Steel Circular (S235) | 12.5~60mm x 3.0mm |
Capacity- Stainless Steel Circular | 12.5~60mm x 2.0mm |
Round Punches Available | 12.5mm-116mm |
Capacity-Mild Steel Shaped (S235) | 68mm x 68mm sq. 3.0mm / 92mm x 92mm sq. 2.0mm |
Capacity- Stainless Steel Shaped | 68mm x 68mm sq. 2.0mm / 92mm x 92mm sq. 1.5mm |
Punching Power | 75kN |
Max Hydraulic Pressure | 680 bar |
Hydraulic Oil | HLP32 |
Length |
320mm |
Weight Gross / Net |
11 / 10 kg |
![](https://stakesys.co.uk/media/wysiwyg/IMG_3372.jpg)
![](https://stakesys.co.uk/media/wysiwyg/IMG_3372_1.jpg)
![](https://stakesys.co.uk/media/wysiwyg/pwer_punch_image-800x800.jpg)
![](https://stakesys.co.uk/media/wysiwyg/pwer_punch_image-800x800_1.jpg)
![](https://stakesys.co.uk/media/wysiwyg/IMG_3371.jpg)
![](https://stakesys.co.uk/media/wysiwyg/IMG_3371_1.jpg)
![](https://stakesys.co.uk/media/wysiwyg/IMG_3374.jpg)
![](https://stakesys.co.uk/media/wysiwyg/IMG_3374_1.jpg)
![](https://stakesys.co.uk/media/wysiwyg/IMG_3376.jpg)
![](https://stakesys.co.uk/media/wysiwyg/IMG_3376_1.jpg)
