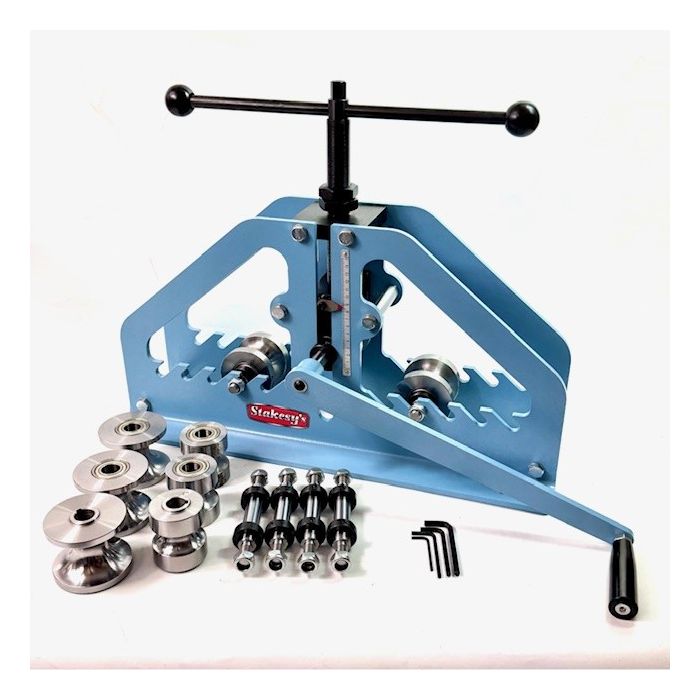

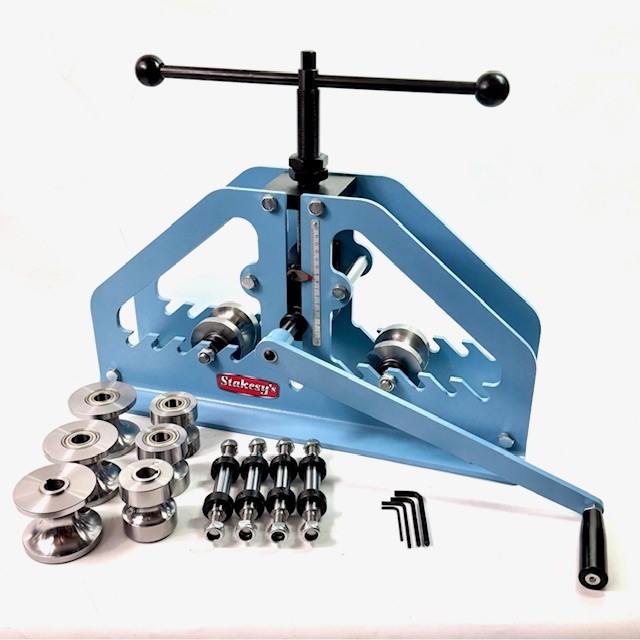

Stakesys RB50R Roll Bender inc 3 Roll Sets
Our newest Roll Bender. Almost identical to the RB50R but slightly thinner main plates.

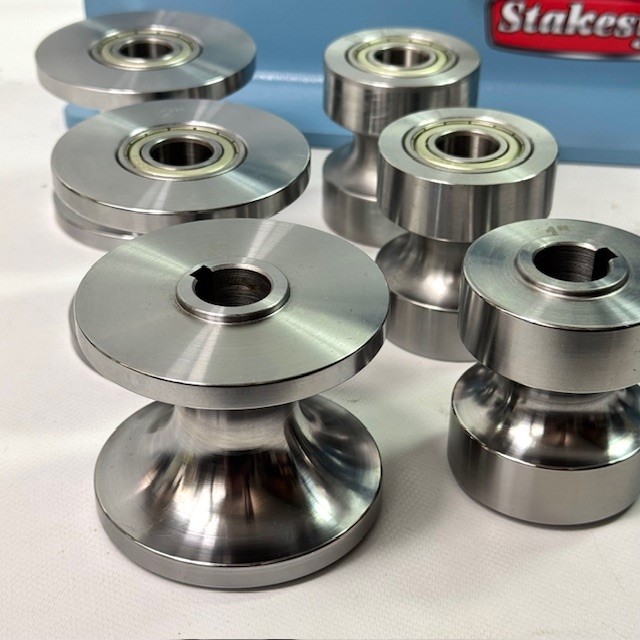

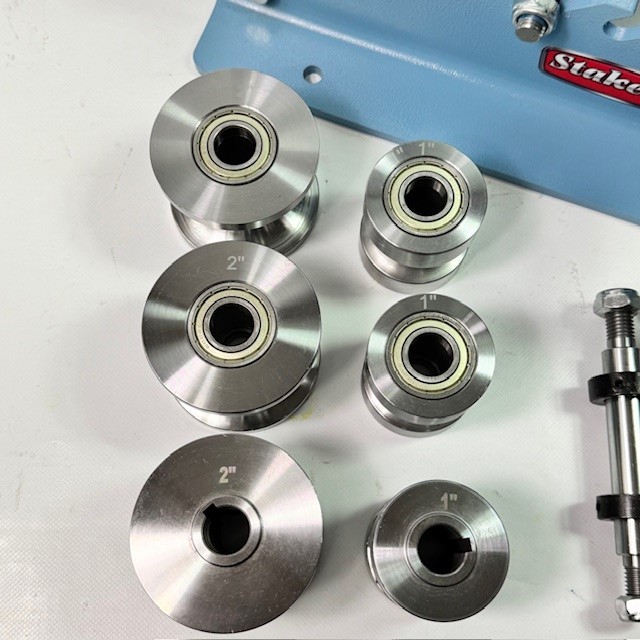

For rolling curves in mild steel and aluminium. The RB50 comes with 3 roll sets included in 1.0" , 1.50" and 2.0". The maximum capacity in mild steel is 1.50" od. x 2.5mm wall. The 2.0" is for aluminium only up to 2.0mm wall. Roll benders differe slightly from Ring Rollers in their ability to roll complete circles. Whilst the twin plates give massivly more strength and stop shaft flex, they also inhibit removal of "rings" so are predominanly used for curves only. Rings are still possible in smaller tubing up to approx. 15-20mm od. in larger radii where the material is springy enough to pull to the side of the frame. Generally, if you want to roll rings choose on of our side shaft mounted MRR3 machines for smaller diameter tubing.

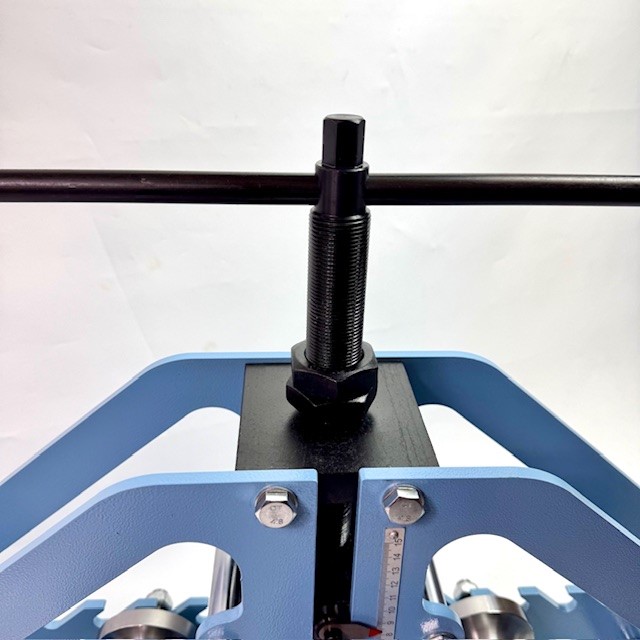

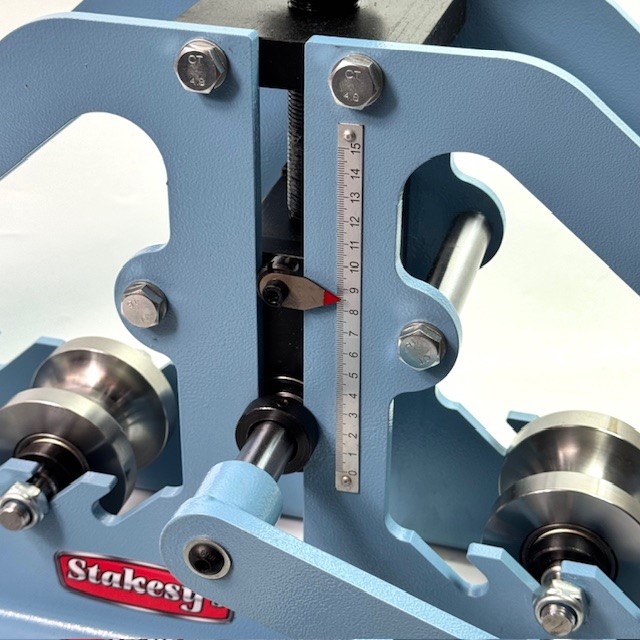

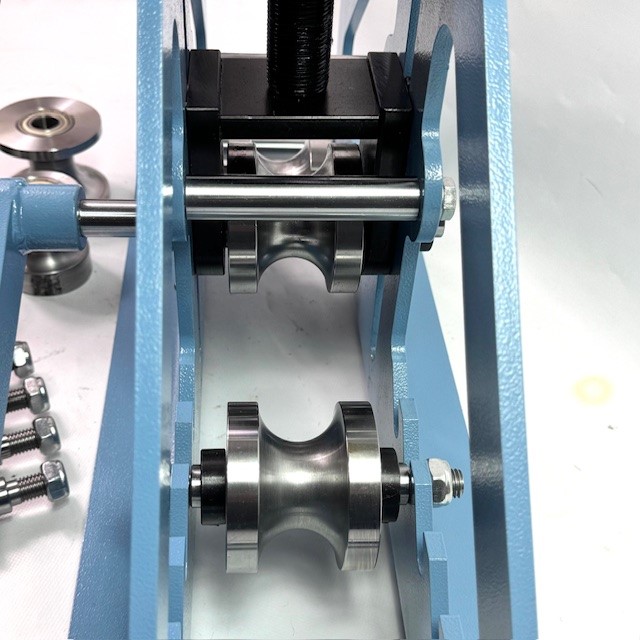

For larger rads in bigger tubing the RB50 works superbly. All rollers run on ball bearings and the the top roll includes a depth gauge for repeat work. The large diameter lead screw has double depth stop lock nuts. Plates and handle are powder coated for longevity and the extra roll sets come with bearings and shafts for fast change.
Extra roll are available. All the rolls from the RB60 also fit the RB50 machine.
| Product Code Set | RB50R |
| Max Dims Mild Steel Round | 1.50" x 2.5mm wall |
| Max Dims Aluminium Round | 2.00" x 2.5mm wall |
| Minimum Radius Achievable | 40mmR (80mmD) (vary depending on od., material and wall thickness) |
| Rolls Included | 1.0",1.5" & 2.0" Round |
| Dims for shipping | 50cm x 20cm x 15cm - 30kg |
