MAGBRAKE 1250M ELECTRIC MAGNETIC BRAKE PRESS
Calculate UK Shipping below
Like it? share it!
INTERNATIONAL ENQUIRIES CLICK HERE

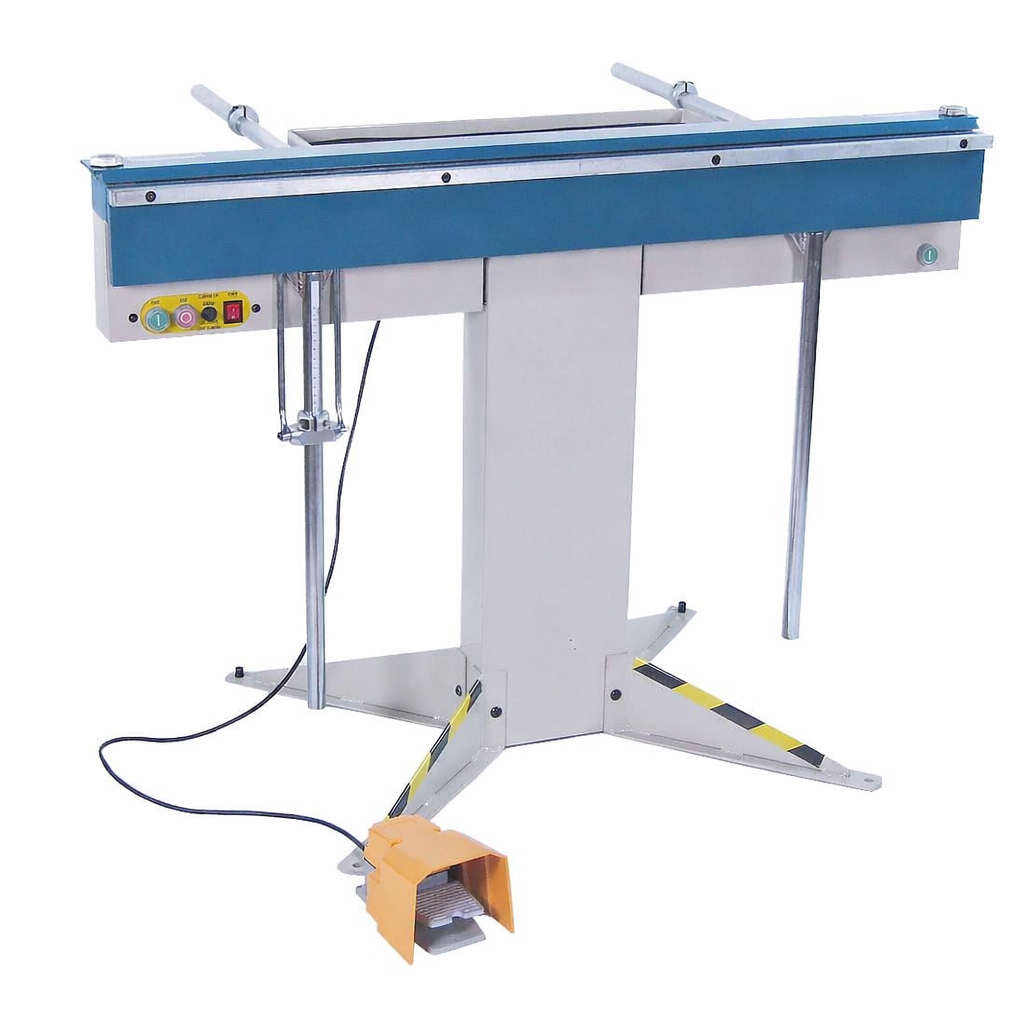

Magbrake EMB-1250M - 230v Electro-Magnetic Brake Press
The Magbrake EMB-1250M is a 1250mm magnetic sheet metal brake built to deliver exceptional flexibility and advanced forming capability. Powered by a high-strength electromagnetic clamping system, this brake makes it easy to bend boxes, pans, channels, and complex profiles that traditional finger brakes simply can’t handle. It’s an excellent choice for fabrication shops, HVAC professionals, and prototype or custom builders, with the ability to bend up to 16-gauge (1.6mm) mild steel accurately and efficiently.
With a full 1250mm bending width and an impressive 6 tons of magnetic clamping force, the EMB-1250M securely holds a wide range of materials. Foot-pedal operation keeps both hands free to align and support your workpiece, improving safety and precision. The removable clamping bar setup includes multiple bar sizes, giving you the freedom to form enclosed boxes, deep channels, and detailed shapes without obstruction from fixed fingers.
Key Highlights:
- Material capacity: Handles up to 16-gauge mild steel or 20-gauge stainless steel
- Bending width: 1250mm (4 feet), ideal for common sheet sizes
- Magnetic clamping: 6 tons of uniform holding force for clean, accurate bends
- Flexible tooling: Multiple interchangeable clamping bars for boxes, channels, and intricate bends
- Foot pedal control: Hands-free operation for faster, safer setups
- Finger-free design: Perfect for enclosed forms and creative metal shaping
- Heavy-duty construction: Fully welded steel frame for long-term durability
- Industries served: Fabrication, HVAC, aviation, and custom metalwork
- Support & warranty: Includes a 1-year parts warranty and lifetime technical support from Stakesys
The EMB-1250M delivers virtually unlimited forming options in a compact, easy-to-use machine—allowing fabricators to produce precise custom bends without the limitations of conventional brakes.
- Features:
- 1250mm (4') bending length with a maximum capacity of 16-gauge mild steel
- Open-ended magnetic design enables fully enclosed ducts and shapes not possible on standard box and pan brakes
- 6-ton magnetic clamping force distributed evenly across the beam for sharp, consistent bends
- Adjustable stroke angle scale for repeatable, accurate results
- Use solid clamping bars (available in multiple widths) for straight bends or segmented bars for box and pan work
- Adjustable blade gap accommodates different material thicknesses
- Removable lower leaf bending extension allows for ultra-tight bend spacing down to 15mm
- Includes material supports and adjustable back gauges for repeat production
- Covered by a 1-year parts warranty plus lifetime phone-based technical support from Stakesys
Contents, 1 item each:
| Product Code | EMB-1250M |
| Input Power | 230v 1~ |
| Maxc Bend Degrees | 135° |
| Max Box Deth | Unlimited |
| Max Capacity Mild Steel | 1.6mm (16swg) |
| Finger Widths | |
| mm | |
| Max Bending Width | 1250mm |
| Machine Weight | 170kg |
| Dims For Shipping | 190kg |
