PB300V Press Brake
made in
China
INTERNATIONAL ENQUIRIES CLICK HERE

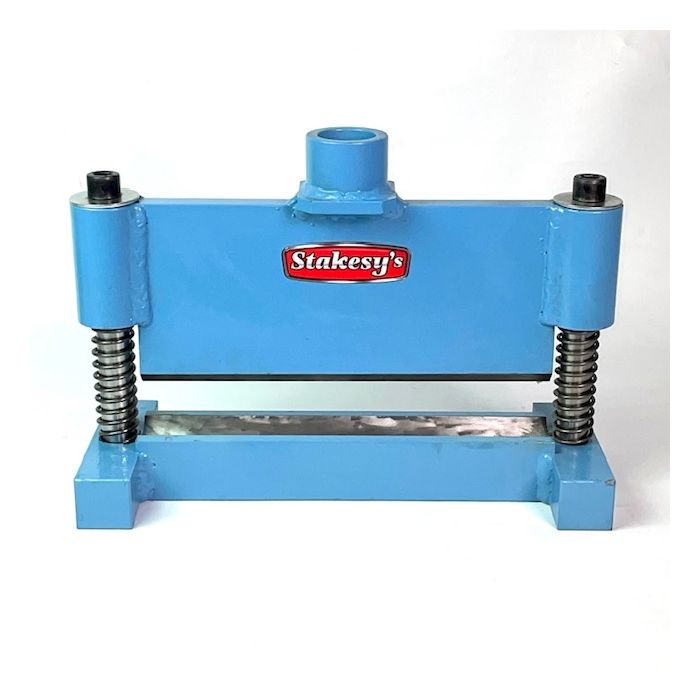

PV300V Press Brake Attachment
Designed to be used with 12 ton+ hydraulic presses from Clarke, Sealey and SIP etc. (press not included in price). Fold up to 10mm thick plate. Great for heavy duty brackets not normally foldable without the use of huge industrial brake press machines.
Machined from solid stock this is a great addition to your workshop press if you are making chassis parts, off road vehicles or smallish commercial fabricated parts.
Total bender width is 400mm so your workshop press will need 405mm of clear space between the vertical sides. The depth of the BP300V is 150mm. We recommend a press with a capacity of 12-30 tonnes.
- Built from Solid Stock
- Bend up to 10mm plate
| Product Code | BP300V |
| Max Capacity at 300mm in Mild Steel | 3.0mm |
| Max Capacity at 200mm in Mild Steel | 4.5mm |
| Max Capacity at 150mm in Mild Steel | 6.0mm |
| Max Capacity at 75mm in Mild Steel | 8.0mm |
| Max Capacity at 50mm in Mild Steel | 10.0mm |
| Max Bending Width | 300mm |
| Minimum Bend Return Width | 25mm |
| Total Width | 400mm |
| Total Depth | 150mm |
| Total Height | 280mm |
| Ram Socket Internal Dimensions | 40 x 40mm |
| Maximum Bending Angle | 90° |
| Packed Dimensions | 42 x 30 x 17cm |
| Weight for Shipping | 22kg |
