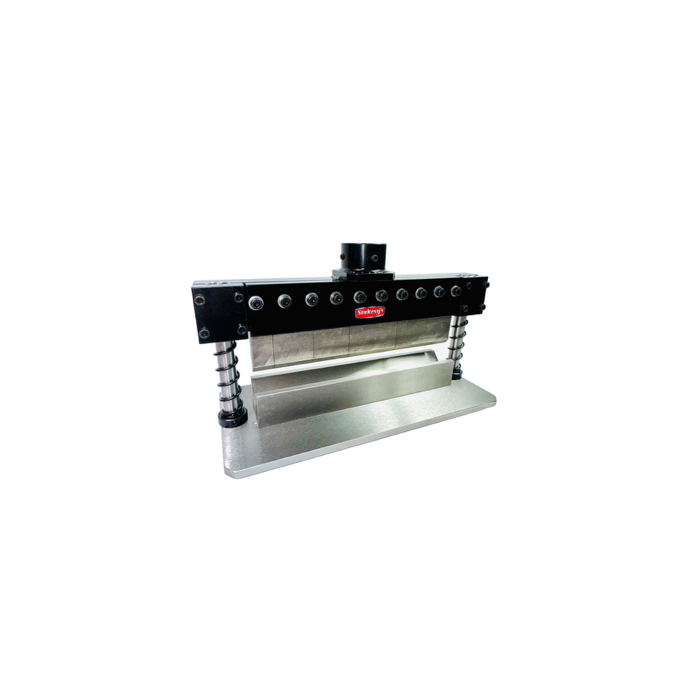

Stakesys PBF300V - Press Mounted Finger Brake
Similar to our other 300mm wide Brake Press attachements, but with the added versatility of removable top fingers. This opens the door to making 4 sides tray folds for lids and boxes. Also know and a box & pan brake.
The PBF300V will fit any workshop press with an internal width between the uprights, of 415mm or more. The socket accepts an arbor up to 48mm diameter. If your screw on arbor cap is a different size it will still work. You will just need to remove the grub screws and fit the longer cap bolts included.
Capacity depends on your press's tonnage. Using a common 12T press from the likes of SIP, Machine Mart or SGS, expect to be able to bend up to 3.0mm mild steel across the full 300mm width. Using a 20T press you should be able to bend up to 6.0mm across the full width and 8.0mm across 150mm. In aluminium these figures will be higher.
The lower V is machined from solid stock and the whole press works very smoothly. This is a great addition to your workshop press if you are making chassis parts, off road vehicles or smallish commercial fabricated parts. Total bender width is 415mm so your workshop press will need a minimum of 415mm of clear space between the vertical sides. We recommend a press with a capacity of 12-30 tonnes.
Contents, 1 item each:
- Machined lower "V" Tool
- Removable Upper Fingers
- Spring Return
- Works ion Most Workshop Presses
- Ready to go - No Fabrication Required
| Product Code | PBF300V |
| Finger Widths | 25,50,50,75,100mm |
| Max Capacity at 300mm in Mild Steel | 6.0mm |
| Max Capacity at 200mm in Mild Steel | 7.0mm |
| Max Capacity at 150mm in Mild Steel | 8.0mm |
| Max Capacity at 75mm in Mild Steel | 10.0mm |
| Max Capacity at 50mm in Mild Steel | 10.0mm |
| Max Bending Width | 300mm |
| Max Bending Angle | 90° |
| Lower Plate Dimensions | 390mm x 185mm x 10mm |
| Total Distance required between press uprights | 415mm |
| Total Height to Top of Cup | 250mm |
| Ram Socket Internal Dimensions | 48mm bore x 35mm |
| Dims For Shipping | 46 x 23 x 17cm - 24kg |
