SWAG 20 TON 20.5" UK Spec Heavy Duty Press Brake DIY Builder Kit

In stock
SKU
SWAG20TBK
£269.00 £224.17
Calculate UK Shipping below

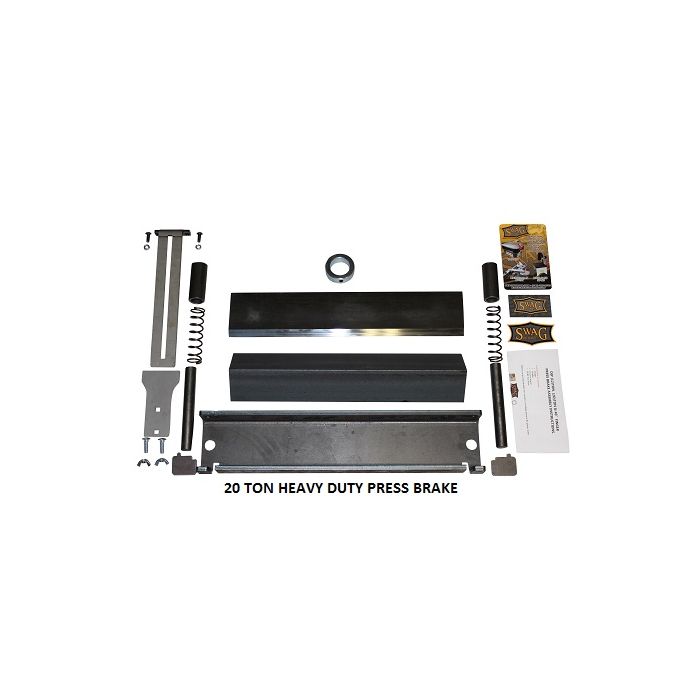

SWAG 20 TON Press Brake Heavy Duty DIY Builder Kit

Back stop also included, but not shown in the photo

Now in 520mm width to suit the presses commonly available in the UK market from companies such as Machine Mart, Sealey and SIP. SWAG have kindly remanufactured this product for Stakesy's. The previous model was 40mm wider and fitted only very large 50 ton presses available in the UK. Check the press you have or will buy has an internal width between the vertical posts of 520mm and you are good to go.

Weld up press brake kit from SWAG Offroad in the USA

Designed to be used with 20 ton hydraulic presses from Clarke, Sealey and SIP etc. (press not included in price)

Kit includes adjustable back stop and side stop for repeatable bends.The top clamping bar is machines from 4140 Cromoly.

There are a couple of extras available for this kit on the listings below. For smaller returns and thinner material you can add the flat top kit. The standard kit has a wide lower v-die which is great for heavy plate but if you need to put a 10mm return on some 1mm steel sheet the material wont span the v. The flat top kit fits on top and enables you to adjust down to a small bottom tool

Goosneck dies are also available for double returns. See below.

Product Code

SWAG20TBK

Max Capacity at 19" in Mild Steel1/8"
Max Capacity at 15" in Mild Steel3/16"
Max Capacity at 12" in Mild Steel1/4"
Max Capacity at 5" in Mild Steel3/8"
Max Bending Width19.25"
Total Width of Brake20.5" (520.0mm)
Maximum Bending Radius110°
Maximum Bend Capacity3/8" Plate
Gross / Net Weights22 / 20kg
