Tubela Piranha Tube Notcher

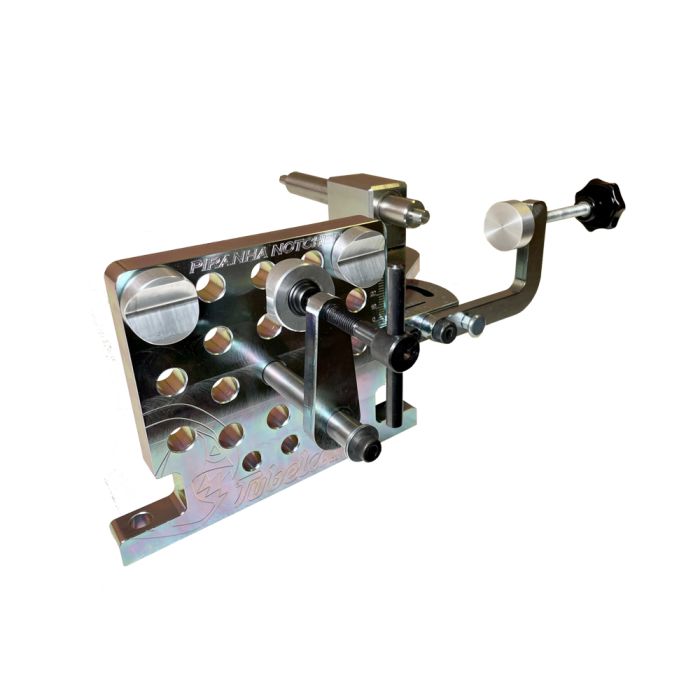

The UK made Tubela Piranha Tube & Pipe Notcher, capacity is from 3/4"OD to 2.5"OD (19mm - 63.5mm) Tube or Box. At any angle or off centre. Just position the tube in the two supplied V-Blocks, tighten the Clamp as needed and notch.
The first notch in a tube or pipe is easily done. However, the Tubela Pirahna Tube & Pipe Notcher makes alignment, off-set and length control of the second, third or forth notches easy to complete accurately.
Use the unique intergrated adjustable 'Stop' to make repetitive notches at the same length; simple and accurate. Pull the Spring Pin to easily remove it, but set, ready for next time.
Its comes in two luxury finishes. Black Zinc or Silver/Colour Zinc plating.
- Compound notches are very achievable.
- Cuts angles up to 60°.
- Utilises a heavy duty Clamp with a magnetic V-Pad to securely hold your tube and allow you to notch on or near to a bend.
- Heavy duty 25mm thick high grade S355JR steel frame which is all CNC machined.
- Easy mounting: bolt or clamp it to a Welding table (50mm or 100mm centres), Jig table or simply secure it in a vice.
- 25mm Ground Stainless Steel Shaft that rotates smoothly in a CNC machined bearing block incorporating premium double needle bearings for maximum rigidity and reliability.
- Uses inexpensive bi-metal hole saws which you can buy at any good DiY store.
- It only requires an ordinary 1/2" hand drill to operate. Ideally a low speed high torque battery drill, running 200-300rpm. Use die-cutting or tapping oil to lubricate the hoesaw.
*drill and holesaw not included*
Product Code | TN-PIRANHA |
Capacity | 19mm (3/4") to 63.5mm / 2.5" |
Maximum Notch Angle | 60° |
Shaft Diameter | 25mm (1.0") |
Offset Notching | Yes |
Offset Clamping | Yes (faceplate) |
Product Weight | 10kg |
Weight & Dims for Shipping | 11kg / 36 x 36 x 12cm |
