Model 3 Hydraulic Upgrade Kit Foot Operated

In stock
SKU
M3HUK-F
£649.00 £540.83
Calculate UK Shipping below



Stakesy's Air / Hydraulic Upgrade Kit for the M3 range of Tube Benders

This kit comprises all parts to required convert your JD Squared Model 3 or Tubela Model 3 manual tube bender to hydraulic powered. The Solberg hydraulic oil filled, spring return 700bar cylinder is powered by a Winner air powered pump which is fed from your air compressor (not included).

2 options are available on the pneumatic pump. This listing is for the foot operated version. A separate listing shows the same pump with hand pendant control.

Kit comprsises all parts (except air compressor) to convert the manual machine to hydraulic. All compressors pushing out over 75psi will power the pump but you will have less waiting time with a larger compressor. We find most units with reservoirs over 50ltrs are fine. See our range of Italian made air compressors

With the M3HUK hydraulic upgrade kit you can successfully and easily bend up to 2.0" mild steel tube with a 3.2mm wall. For heavier wall or higher grade steel you will need to upgrade to a Model 32.

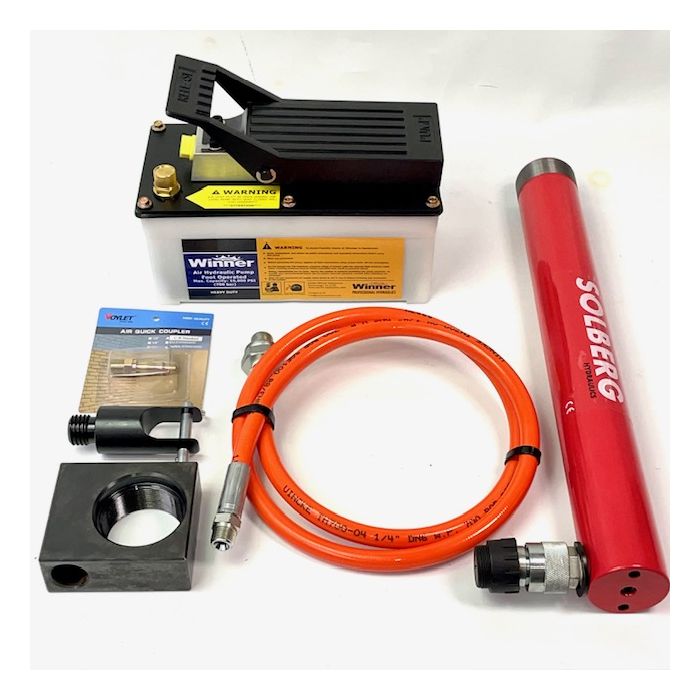

Package includes:

- Winner W-DA1 700bar / 10,000psi pump + air fitting

- Solberg 1014SR one way cylinder with spring return

- Stakesys Billet Cylinder mount and clevice

- Italian 700bar / 10,000psi high pressure hose with dry couple release

Product Code M3HUK-F
Min Pump Air Pressure 75-120psi
Pump Consumption 310ltrs/min
Gross / Net Weights 850g / 800g
