WS8 Tube Filler Resin - 1KG
made in
United Kingdom
Calculate UK Shipping below
Like it? share it!
INTERNATIONAL ENQUIRIES CLICK HERE
Stakesy's WS8 Tube Filler Resin
Low melting point plastic for filling thin-walled tubing such as that found in the bicycle industry and exhaust manufacturing. Rotary Tube benders such as the JD Squared series work superbly on wall thicknesses down to 1.5mm (depending on tube diameter) and down to a 3D bend (an example of a 3D bend would be a 1" tube on a 3" bend radius). Without an internal bullet mandrel there is little to stop the tube from trying to collapse other than the wall thickness of the material itself, and the design of the tooling surrounding the material, which can only do so much. A full mandrel bender costing tens of thousands of pounds, has an internal bullet or articulated mandrel system to prevent this inward travel which causes kinks.

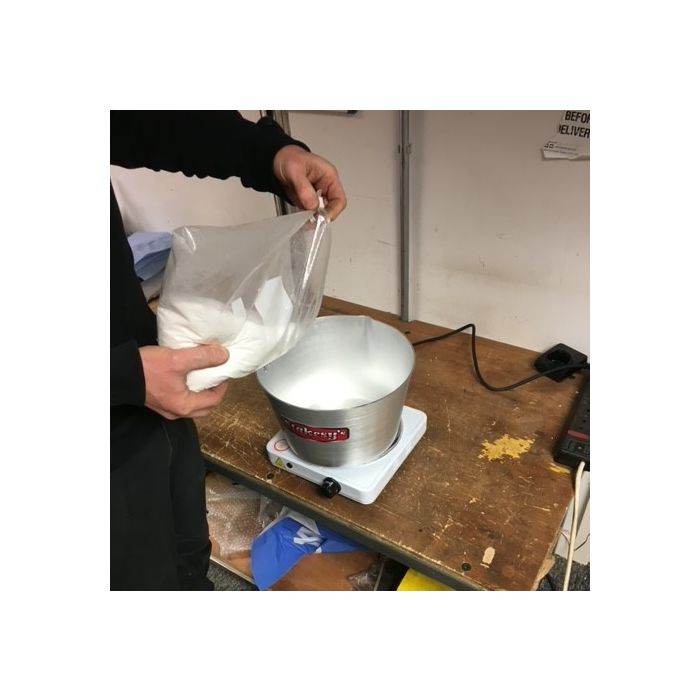

Stakesy's WS8 Tube Filler Resin is used to make a rudimentary mandrel which will help (not cure) against tube wrinkling. The resin comes in powder form and is melted into a large pourable pan over a hotplate (both available from Amazon for very little money). One end of the tube is capped with tape or a plastic bung and the melted resin poured in. Curing time is approximately 6-12 hours depending on quantity used. Once "set" the tube is used in a rotary draw bender to make the desired curves. To release the resin the outside of the bent tube is simple heated with a mapgas plumber's type blowtorch. Because of the low melting point the resin closest to the inner wall will melt and the resin "slug" will start to become malleable and exit the tube and into the melting pot where it can be reused over and over again. Residue can be washed off the inner wall with warm water.
For tube diameters over 1.25" we recommend mixing kevlar strand (1g per1kg) whilst melting. The kevlar breaks up easily and dissipates into the resin mixture where it helps to bind the liquid and helps to prevent cracking during the bending process.
WS8 Tube Filler Resin is not a substitute for a £100,000 hydraulic mandrel bender but can certainly enable bending in thin walled materials or reduced radii. e have had good success where a bend has failed because of small ripple kinks (with a depth of approx 1-3mm) whre it has enable a perfect, smooth bend to be made. There are limits however. If your have a 2.0" x 1.2mm stainless tube tht has completely collapsed during unfilled draw bending then the WS8 wont be able to cure that.
Overall, a great product which can greatly help in specific situations when used with a JD Squared or Stakesys's rotary draw bender.
- Low cost
- Easy and safe to use compared to lead or cerrobend
- Re-useable, no viscosity or performance drift
- Bio degradeable lubricant
- Can be welded through without removal
- Safer operation
- Low odour
- Low fuming
- Replaces fusible alloys such as Cerrobend, Indalloy, Ostalloy and others
| Product Code | WS8 |
| Melting Point | ~70°C |
| Specific Gravity | ~1@20°C |
| Appearance | water white flakes |
| Solubility / Water Hydrocarbons | complete <0.1% |
| Usage Concentration | as supplied |
| Product Weight | 1kg |
