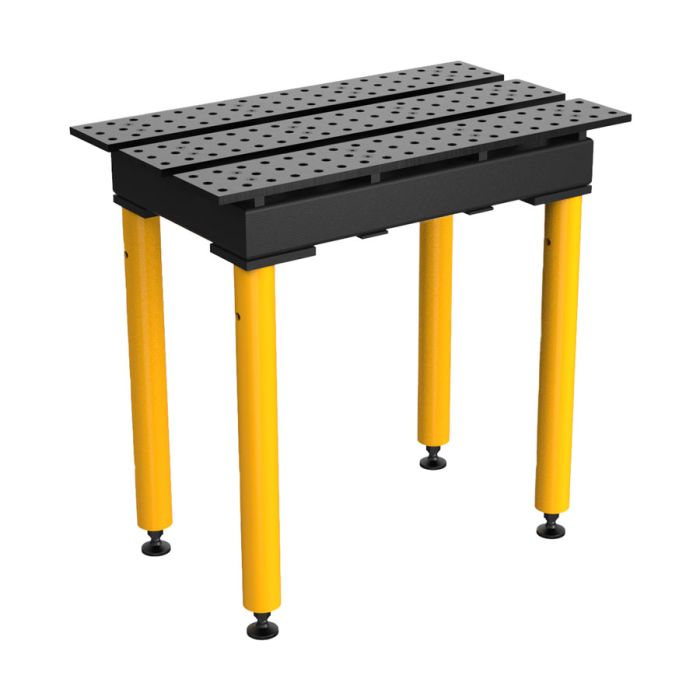

TMQE60610SV Stronghand 1000mm x 560mm Nitride Slotted Welding Table - 777mm
STRONGHAND TMQE60610SV Nitrided 1000mm x 560mm 16mm Slotted Welding Table - Short Legs
BuildPro by Stronghand offers a complete line of heavy duty and ultra-durable tables for work holding in metal fabrication and jig work. Their tried and tested system is the fastest method of locating and clamping your workpieces.
The system consists of a working surface machined with equally spaced boreholes, allowing you to slip-fit clamps, stops, spacers, and other work holding tools into place.
The Stronghand range consists of 3 versions of the industry standard 16mm holes on a 50mm centre. They consist of Slotted Tables with removable plates, MAX Full Surface Tables with removable plates and ALPHA full surface tables with sides. There are also a multitude of ways to add, remove and connect various attachments and upgrades. The Stronghand BUILDPRO is a truly modular range.
Legs are available in different fixed heights, adjustable heights, and with fixed feet or casters. As there are so many configurations it can be a bewildering array of numbers and codes. If you are unsure feel free to call or email and we will post you a full Stronghand BUILDPRO catalogue.
This slotted, single sided heavy duty table features open slots between the removable top plates. This provides extra versatility, allowing you to slide clamping tools or pliers using their T-Slot adaptors or Sliding Channel adaptors on the open slot edges as clamping surfaces.
Available in stadard and nitrided (for weld spatter resistance) tabletop finishes.
- High quality ground surface
- Nitride coated for weld resistance
- Slotted top for various clamping options
- Removable top plates
- Industry standard 16mm x 50mm holes
Product Code | TMQE60610SV |
Table Surface Dimensions (mm) | 1000 x 560 |
Table Surface Height (mm) | 777 |
Height Option Low / High | High |
Leg Kit Included | 4 x TML2530 |
Surface Option Standard / Nitrided | Nitrided |
Hole Configuration Diameter x Spacing (mm) | 16 x 50 |
Leg Capacity (kg) | 680 |
Gross Weight (kg) | 111 |
