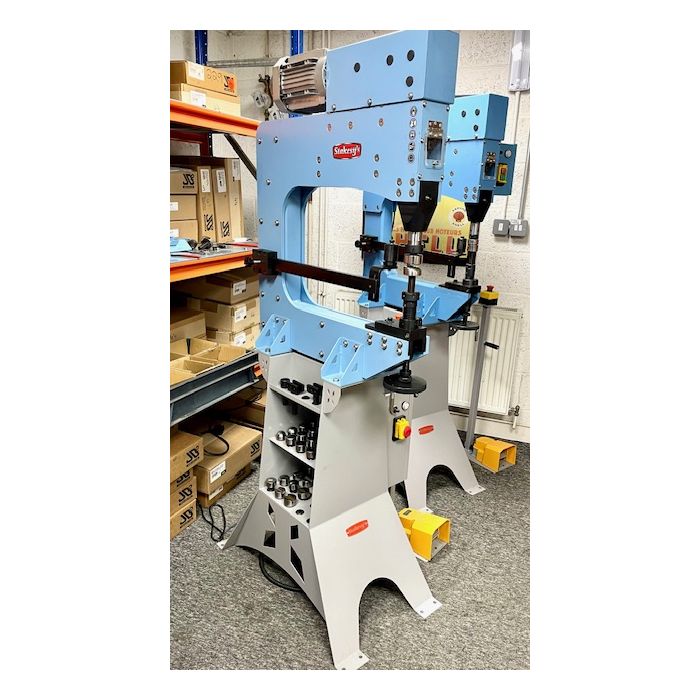

Stakesys EPH560 230v Power Hammer

This machine brings a whole new level of possibilities to your metal shaping projects and drastically reduces the time taken to shrink and stretch material. The EPH560 Power Hammer will shrink and stretch up to 1.2mm (18swg) mild steel and 1.6mm (16swg) aluminium using the included thumbnail shrinking dies, as well as a huge range of radiussed steel and nylon forming heads.

It can also be used for a multitude of shaping operations from linear stretching, beading, louvres, doming, edge setting, joggling, tipping and flanging. One of the most unique features is the ability to make your own tooling, which can then be easily inserted into the supplied universal tool holders, to create virtually any shape desired. A common application would be a unique shaped bead in a car floor pan, or a bodywork moulding. By purchasing some of our 60mm x 16mm optionional blanks, you can cut the desired shape using a plasma cutter or abrafile to make male and female dies. These 2 halves are then dressed and inserted into the tool holders. Tooling can also be manufactured by 3D printing from plastic. This opens the power hammer up to so many possibilities not usually possible without expensive machining costs.

One of the most common tooling sets used on the power hammer thumbnail shrinking dies (included) which rapidly create a "tuck shrink" into the panel, which is then hammered into itself as the panel is retracted. This thickens and shortens the material which, in turn, makes it curve. Tuck shrinking is a manual technique used since the days of making armour, that has been sped up using this mechanical approach.

The EPH560 Power Hammer comes with a comprehensive 49pcs tooling selection for shrinking, stretching, planishing, doming, beading and louvre forming. Other optional tooling includes joggling, flanging, edge setting and many shaping tools.

The EPH560 Power Hammer can be run from a standard 230v 3 pin supply and is remarkably quiet in operation. The speed is controlled from 2 places; the pedal control and the panel knob. The pedal works like a throttle in a car (0-100%) to the maximum set on the knob. This makes for accurate control of the tooling.

A unique feature of the EPH560 is the ability to switch the hammer action from either "rigid" or "dampened" by turning a dial under the clear window on the front of the machine. The rigid setting is used for direct operations such a beading, flanging and louvres where a definitive depth is required for uniformity. The "dampened" setting activates 4 springs and is used for planishing, shrinking, stretching etc. This is where the power hammer has an advantage over used Pullmax machines which are fied at rigid.

Tooling can be changed in seconds using the collet chuck and the lower tool holder is adjusted for clearnace up and down by handwheel. Another handwheel on the motor enables the operator to move the upper tool to its lowest postion to set the tool for the correct material thickness.

A adjustable backstop is included with 2 optional fitments (fixed for straight edges and roller for curves). Throat depth is 560mm.

The EPH560 is a true workhorse with endless possibilties for shaping. Feel free to call use for a play on our demo machine.

• Capacity - 1.2mm thick sheet mild steel
• Quick change collet tool holder
• Variable speed via inverter control, 0 - 960 blows per minute
• 560mm throat depth capacity
• 395mm throat height capacity
• Variable foot pedal control with emergency stop
• Steel fabricated upper frame - 12mm thick plate
• Steel fabricated lower box section steel frame
• Drive shafts have bronze bushes & greasing points
• Adjustable heavy duty single arm length stop with 1 round roller & straight guide fence
• Safety NVR power switch
• Steel dies made from CR12 steel & hardened
• Nylon dies made from durable nylon
• 1.1kW / 1.5hp, 230V motor with inverter speed controller and soft start

      Includes

      STEEL DIES

• 1 x Set of Universal holders (16mm opening) for custom tooling
• 1 x Roller guide for concave or convex shapes
• 1 x Set of Thumbnail shrinking dies
• 1 x Set of Louvre dies
• 3 x Sets of Steel beading dies (1/4”, 3/8”, 1/2”)
• 1 x Linear stretching die
• 1 x Flat upper hammer die
• 16 x Radius lower dies - 3/4", 7/8", 1", 1-1/8", 1-1/2", 1-7/8", 2", 3", 4", 5", 6" (1/16" radius edge), 6" radius (1/4" radius edge), 8", 14-1/2", 24", 36".

      NYLON DIES

• 1 x Flat upper hammer die
• 13 x Radius lower dies - 3/4", 7/8", 1-1/8", 1-1/2", 1-7/8", 4", 5", 6" (1/16" radius edge), 6" (1/4" radius edge), 8", 14-1/2", 24", 36"
