PPH600F Pneumatic Planishing Hammer

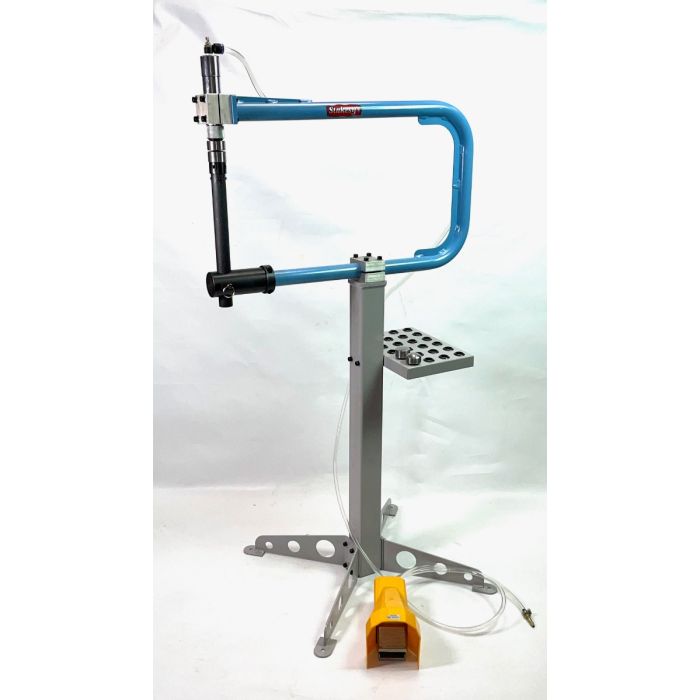

Used for planishing (smoothing) welds and shaping material for use on car bodywork, motorcycle tanks and sculpture. The PPH600F has a 600mm throat capacity and comes with 3 lower anvils included (1.0"R, 2.0"R & 3.0"R). Customers can either make additional lower tooling for specific jobs or buy extra optional tooling when we have it available in the near future. There is a hammer speed adjustment at the head of the machine where it is easily accessable.
Tooling can be stored in the 24 hole tool rack to keep everything neat and tidy. The air motor is a bespoke unit, rather than a modified air chisel, and is adjustable up to 3000bpm. The air motor mount comprises 4 cap bolts and 4 grub screws which allow for perfect upper and lower tool alignment and the lower tube clamp design allows the upper head unit to be both adjusted fore and aft for alignment, and also for throat depth adjustment.
Many air hammers use huge 100mm+ box section in their design. Whilst a rigid framework is preferred for an english wheel, a planishing hammer works in a completly different way. Think of the way your flexible wrist and arm holds and swings a hammer and is still effective at shaping steel. In fact a flexible frame is preferred to protect the air motor from falling apart. Another benefit of the smaller, but heavy gauge tubing is a vast reduction in echo noise found on large box section machines. A planishing hammer, whilst being able to shape to a certain extent, is more often than not, used for smoothing and detailed, tricky panel work. A good example would be areas that are inaccessable with an English wheel.
Minimum air requirment is 90psi. Most compressors will put out the required psi but the larger the air receiver, the less time waiting for the pump to catch up. We would recommend a receiver over 50ltrs. As with all reciprocating air motors fitting an inline oiler / filter is essential to prolong the life of the air motor. See product here: Filter Regulator Oiler
- Throat Depth to 600mm
- Bespoke Air Motor
- Sturdy Feet Design
- Adjustable in all directions for alignment
| Product Code | PPH600F |
| Material Capacity Mild Steel | 1.2mm |
| Material Capacity Aluminium | 2.0mm |
| Standard Anvil Diameters | 1.0"R, 2.0"R, 3.0"R |
| Throat Depth | 600mm (24") |
| Throat Downdraught | 280mm (11") |
| Max BPM Motor | 3000bpm |
| Min Compressor Requirement | 90psi |
| Dimensions Built Up (LxWxH) | 75 x 57 x 143cm |
| Dimensions for Shipping (LxWxH) + kg | 88 x 49 x 17cm - 23kg |
